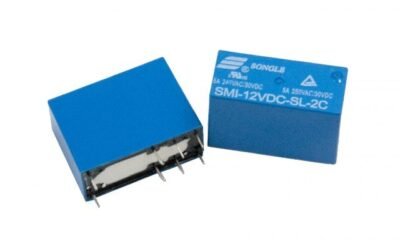

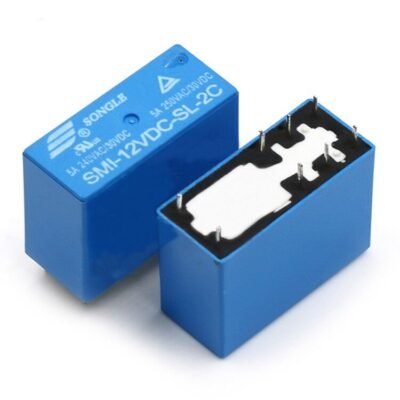

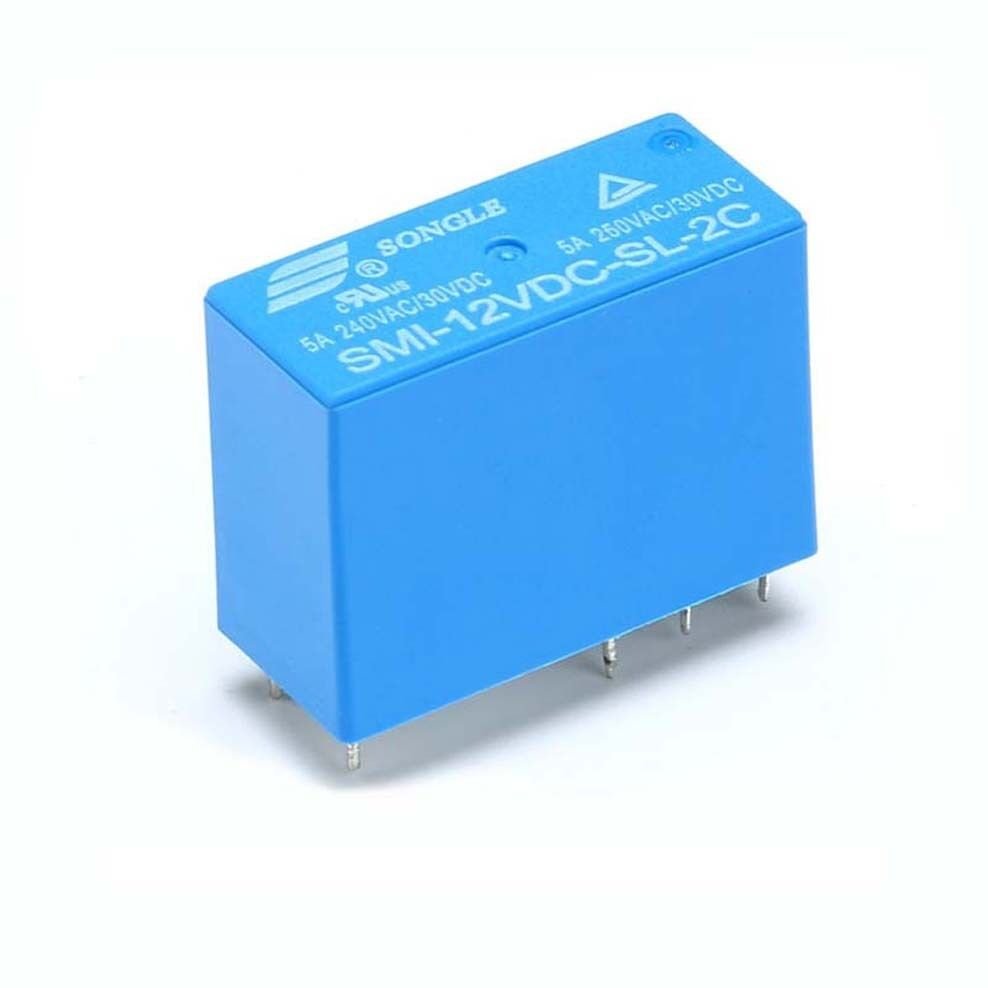

SONGLE Relay SMI-12VDC-SL-2C 5A 250VAC/30VDC 8-Pins 2-NO 2-NC Blue

Features:
Miniature volume, PCB usage
Contact rating: 5A
Temperature range: -40℃ ∼ +85℃
Specifications
Attribute Value
Category Relays/Power Relays
Contact Resistance 100mΩ
Release Time 10ms
Operate Time 10ms
Coil Resistance 267Ω
Maximum Switching Voltage 250V@AC
Coil Voltage 12V
Maximum Switching Current 5A
Contact Form DPDT (2 Form C)
Coil Rated Power 540mW
Operating Temperature -40℃~+85℃
Coil Type Non-polar – Single Coil
Pin Number 8
